Ergonomic work space for narrow aisles

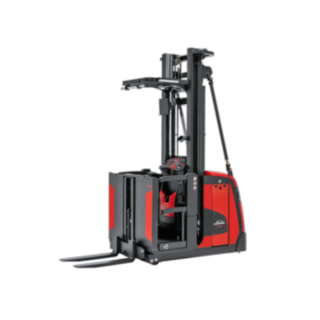

The Linde V10 vertical order picker has been designed for order picking tasks at the first and second racking levels, as well as occasional working up to a height of 6.35 meters. The cab and all the control elements meet all the ergonomic requirements for effortless working. The truck is available with a walk-on loading platform or auxiliary lift. Various lift motors, and chassis, cab and mast variants can be configured in almost any combination. The equipment can therefore be adapted to individual requirements and achieve a high level of picking frequency performance. It can be used with mechanical or inductive guidance or be freely movable - in each case with a maximum load of 1000 kilograms.
Characteristics
Safety
The driver must touch two hand sensors, as well as the dead-man’s switch to be able to move the truck. This prevents misuse or operating errors. With a platform height greater than 1.20 meters, the electrically monitored side barriers must be closed to be able to operate the truck. When the cab is raised and when negotiating corners, the truck slows down automatically. Depending on lift height and steering angle, the optional assistance system, Linde System Control (LSC), adjusts the speed automatically and completely variably.
- Three point operation
- Automatic speed reduction on cornering and with cab raised
- Good view from large mast width
- Electrically monitored side cabinets
Ergonomics
Thanks to simple and ergonomic control, the driver can operate the V10 precisely and effortlessly. The cab provides plenty of space for the picking procedure. It is spring-suspended and protects the operator from shock. The low entry takes the strain off the legs when getting in and out frequently. On the model with auxiliary lift, the low railing on the forks facilitates the operator’s movements between racking and pallet. Various compartment areas and equipment variants, such as radio equipment, fans, data terminal and goods scanners, mirrors, and lights, support the operator's work.
- Spacious cab
- Low entry and railing height
- Spring-suspended cab
- Ergonomic control
Handling
The V10 vertical order pickers have powerful three phase motors for high lifting and travel speeds. In addition, the trucks can move and lift at the same time. In this way, the operator can reach the desired racking location in the shortest time via the quickest route. Both of the basic variants of the trucks in this product line can be individually configured to suit any application, with a walk-on platform or auxiliary lift as well as a wide range of cabs, chassis, and mast variants. This, along with the ergonomic operation enables a high degree of productivity to be achieved. Economical electric motors and energy return when braking improve the cost-effectiveness.
- Simultaneous driving and lifting
- High lifting and travel speeds
- Individual equipment
- Energy recovery
Service
All truck components are easily accessible for the service technician. Also, he is able to read and check all data easily on the service laptop. A CAN bus connection is provided for this. The active cooling system increases the availability of the truck, even under intensive working conditions. The encapsulated rotary current drives are maintenance-free. Battery changing is done to the side using roller beds and a removal rack or by using a crane.
- CAN bus connection
- Service components easily accessible
- Active cooling system
- Maintenance-free motor
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Aisle width with pallet 800 x 1200 along forks |
|---|---|---|---|---|---|
| V10 Simplex mast | 1.0 (t) | 1500 (mm) | 9 / 9 km/h | 1485 (mm) | 1190 (mm) |
| V10 Standard mast | 1.0 (t) | 4550 (mm) | 10 / 10 km/h | 1650 (mm) | 1380 (mm) |
Optional Equipment
-
Acoustic signal
-
Rescue Alarm
-
Control panel
-
Fixing systems
-
Linde BlueSpot™
-
Ergonomic rest padding
-
Inductive guidance
-
Linde System Control (LSC)
-
Pedestrian buttons
-
Tilting barriers
-
Radio preparation
-
Mirror module
Acoustic signal
The signal can be heard when the order picker is moving, giving a warning to pedestrians and other vehicles.
Rescue Alarm
There is the option for the vehicle controller to monitor various sensors on the control panel, side barriers and dead-man’s switch, and to give an acoustic warning if the signals might indicate operating errors.
Control panel
The control panel can either be fitted only on the load end or on both the load and mast end. The mast end control panel follows the same control logic as the load end panel.
Fixing systems
Items such as terminals, scanners, clip-boards, writing supports or individual fixtures can be fitted. The attachment bars are mounted on the left and right-hand side of the mast as well as on the load end on the overhead guard.
Linde BlueSpot™
Lane warning device Linde BlueSpot™ enhances safety during operation as the LED spot makes the forklift noiselessly visible in both travel directions.
Ergonomic rest padding
The ergonomically designed "Lean-on Ergoroll" padding has three adjustment positions and is used when the truck is operated from the load end. The driver can rest against it during travel.
Inductive guidance
The trucks have sensors that detect the guide wire in the floor, enabling the truck to be steered safely along the passageway.
Linde System Control (LSC)
The system provides rapid turnaround and increased safety by variably adjusting the speed of the truck dependent upon the steering angle and the lift height.
Pedestrian buttons
On both sides of the truck, there are push buttons on the lifting mast. Using these, the driver can operate the order picker from the outside whilst walking alongside.
Tilting barriers
If the driver leans on the barrier, it folds out to the side. This enables him to reach the racking better, making the order picking easier.
Radio preparation
The truck is fitted with a 12V/50W connection as well as loud speakers and an antenna in the cab.
Mirror module
The equipment package includes a large rear-view mirror as well as sideways working lights to illuminate the working surroundings in the racking. The package can be supplemented with a fan system to cool the operator when working at height beneath the ceiling in hot weather.
